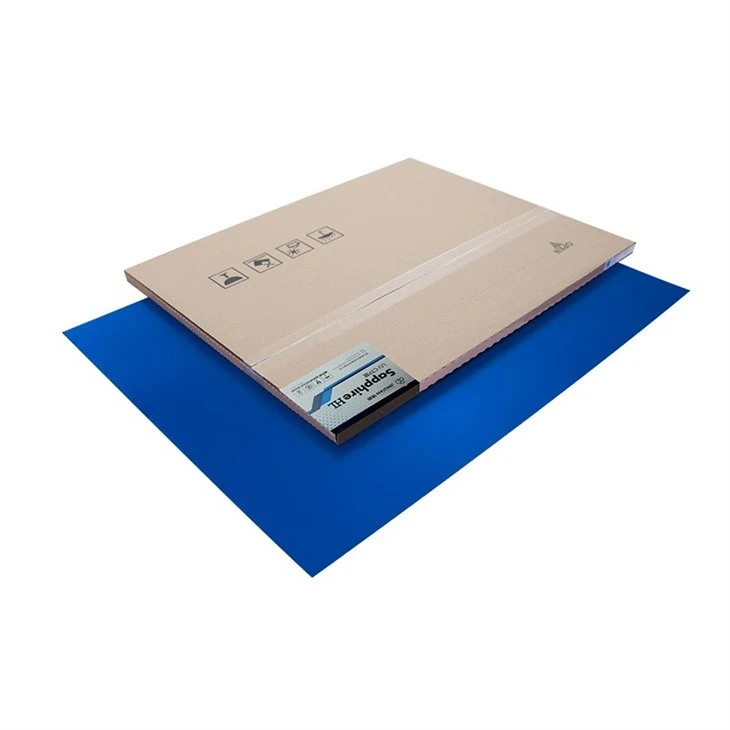

Aluminum CTCP Plate



JingFan aluminum CTCP Plate can be used directly to environmental friendly UV ink, reducing volatile organic solvents (VOC) emissions in the printing process. The high run length reduces the usage of plate in long printing and saves costs and time in production.





• JingFan aluminum CTCP Plate can improve the prepress preparation efficiency, while maintaining high print volume, greatly reducing the waste of paper and ink.



• Resist UV-ink; Workable with both normal ink and UV ink



• Mature product, good stability, and wide processing latitude



• Long run length with non-ablative coating



• Being adaptive to most plate setters, processors, and solutions









Type	No preheat, positive, excellent chemical-compatibility and high durability.
Applications	Commercial, newspaper,packaging printing works and so on
Base	Electrochemically grained and anodized aluminum substrate
Gauge	0.15mm, 0.20mm,0.24mm,0.30mm and 0.40mm
Coating color	Blue
Spectral sensitivity	405 nm
Exposure energy	45 - 65 mJ/cm2 (based on platesetter settings and resolution)
Resolution	1% to 99% @ 200 lpi or 20 micron stochastic (based on platesetter settings and capability of image)
Developer	Good compatible with more than 90% developer brands in the market
Run length	100,000 impressions unbaked 300,000 plus impressions baked (based on image resolution, print machine,chemical, ink and paper conditions)
Safelight	Yellow safe-light
Shelf life	18 months(cool-dry storage,<35℃,40-80%humidity,away from sunlight)





From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



CTCP plate printing is a hybrid printing technology that combines the advantages of both digital and conventional printing. The process of CTCP plate printing involves creating an image on a computer and then transferring it onto a conventional printing plate. The printing plate is then used to print the image onto paper or any other material.



CTCP plate printing involves the use of a digital plate-making system that uses a laser to etch the image onto the plate. The laser system is controlled by specialized software that allows for precise control over the etching process, resulting in high-quality images. The printing plates produced by CTCP plate printing have a higher resolution and better quality than plates produced by traditional offset printing methods.



Safelight	Handle under yellow safelight (UV free)
Shelf Life	12 months under recommended storage conditions
Packaging	Available in all standard formats,including bulk packaging options such as APL packaging
Storage and handling	stored in a cool and dry environment,away from excessive cold, heat and humidity.









1. Are you trading company or manufacturer?

We are professional printing plates manufacturer. And we trade our products with our clients directly.



2. Can you do OEM and ODM?

Yes, OEM and ODM are both acceptable with your required label,and the basic quantity we will advise after we discuss.



3. May I have samples?

Sure. Please send us the size you need for the Aluminum CTCP Plate. After details are confirmed, we will send samples as early as possible.



4. What are the CTCP plates?

CTCP plates are created by exposing a conventional printing plate to a digital image. The image is then transferred onto the plate using a laser or other similar technology. The resulting plate can then be used to print high-quality images with a high degree of accuracy and detail.



5. What are aluminum printing plates?

Printing plates are thin, flat sheets of metal commonly made from aluminum. They are used in printing products like business cards, catalogs, and brochures.
