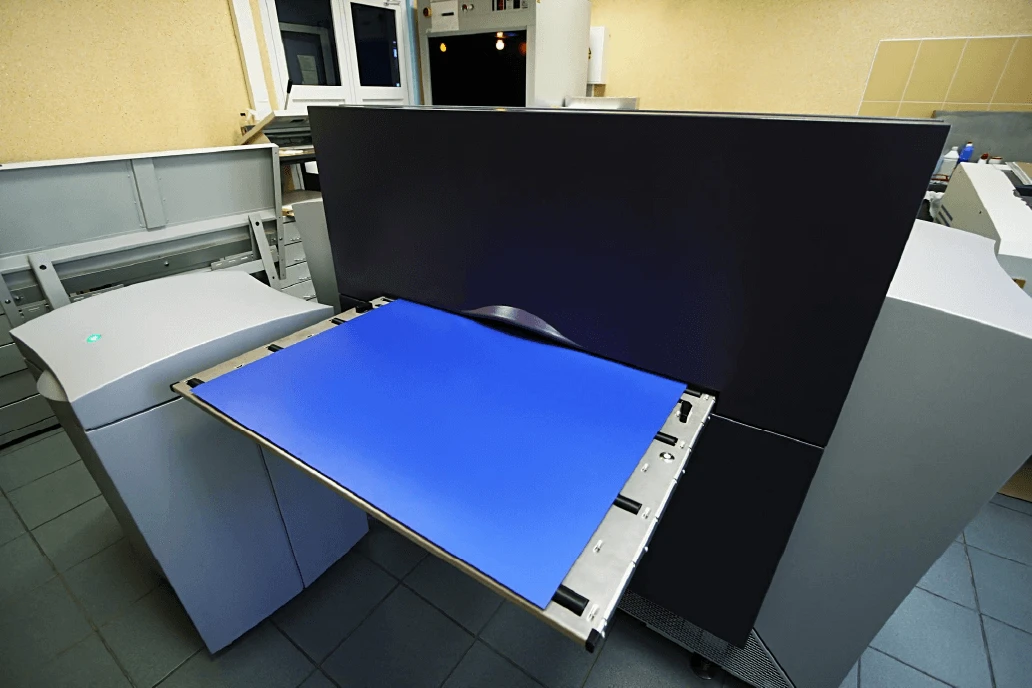

Aluminum Double Coating CTCP Plate
JingFan aluminum CTCP Plate can be used directly to environmental friendly UV ink, reducing volatile organic solvents (VOC) emissions in the printing process. The high run length reduces the usage of plate in long printing and saves costs and time in production.
Description
Brief Introduction
JingFan aluminum Double Coating CTCP Plate possesses high resolution and it can achieve 2 to 98% @ 250lpi AM screening resolution and 25 micron FM screening resolution .
Product features
Excellent stability and adaptability
Aluminum Double Coating CTCP Plate has good storage stability, its sensitivity, dot reduction and other properties are almost unchanged in the shelf life.
Specification
|
Type |
No preheat, positive, excellent chemical-compatibility and high durability. |
|
Applications |
Commercial, newspaper,packaging printing works and so on |
|
Base |
Electrochemically grained and anodized aluminum substrate |
|
Gauge |
0.15mm, 0.20mm,0.24mm,0.30mm and 0.40mm |
|
Coating color |
Blue |
|
Spectral sensitivity |
405 nm |
|
Exposure energy |
45 - 65 mJ/cm2 (based on platesetter settings and resolution) |
|
Resolution |
1% to 99% @ 200 lpi or 20 micron stochastic (based on platesetter settings and capability of image) |
|
Developer |
Good compatible with more than 90% developer brands in the market |
|
Run length |
100,000 impressions unbaked 300,000 plus impressions baked (based on image resolution, print machine,chemical, ink and paper conditions) |
|
Safelight |
Yellow safe-light |
|
Shelf life |
18 months(cool-dry storage,<35℃,40-80%humidity,away from sunlight) |
Certificates
FAQ
Can you do our own packaging?
Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
